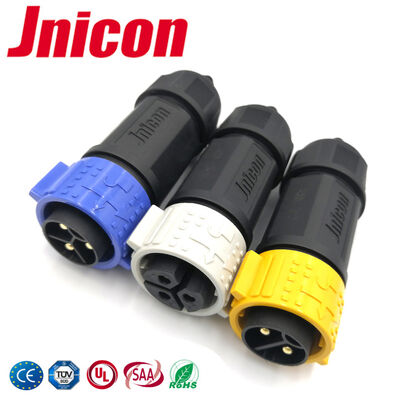

M25 3 Pin Gold Plated Wire Connectors 600V High Current Waterproof Connector

IP67 Male Female Waterproof Power Connector , M25 Circular 3 Pin Waterproof Plug

Quick Detail Of Waterproof Circular Connectors
1) Advanced structure: Self-locking
2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional
3) Contact pin: Screw terminal and soldering terminal available
4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
5) Colours:Black,blue,white and yellow color supported
6) Cable length:Different cable length could be customized



M25 waterproof power connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.


Once assembled, the M25 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.


This M25 waterproof power Connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.


Application Of Waterproof Circular Connectors
Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.

1. LED lighting
2. outdoor soft strip display
3. electrical equipment
4. automated robots
5. electric bicycles
6. Ships
7. electric vehicles


Dimension of M25 waterproof connector





FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.
6. Q: Can you give me some advices on how to buy the Led wire waterproof connector ?
A: It's my pleasure to help you first of all.If you are interested in our products,The best way is that you can make a simple drawing to me with a product picture,Then I will give advice for you.If you have any inquiry,please feel free to ask us and we'll try our best to help you!
7. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.
