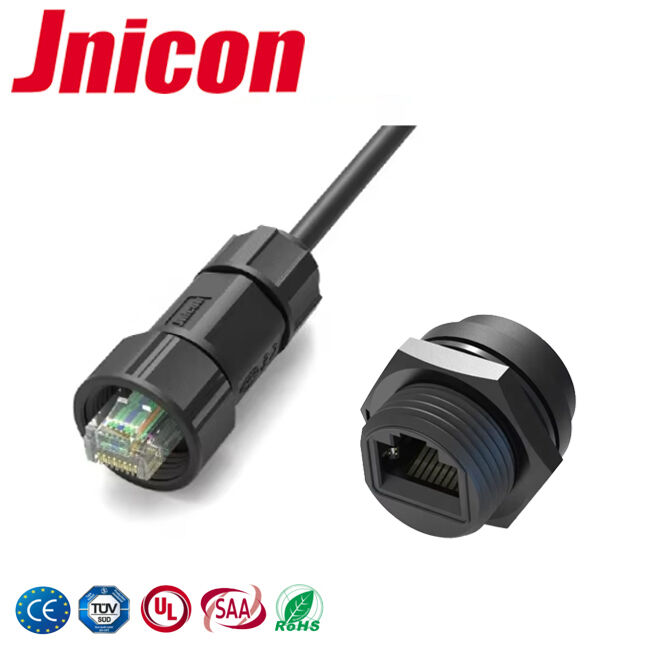

Name: UL PA66 Screw Locking Nylon Cat5e M19 RJ45 Waterproof Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: Connettore impermeabile Ethercon RJ45
Price: 2.20 USD
Availability: InStock

Casa Prodotti rj45 impermeabilizzano il connettore

UL PA66 Screw Locking Nylon Cat5e M19 RJ45 Waterproof Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Jnicon
Certificazione:	UL/TUV/CQC/CE
Numero di modello:	Connettore impermeabile Ethercon RJ45

Termini di pagamento e spedizione:

Quantità di ordine minimo:	100 (10 coppie di campioni)
Prezzo:	negotiable
Imballaggi particolari:	1.Sacchetto di plastica; 2.Cartone; 3.Secondo i requisiti del cliente
Tempi di consegna:	3-5 giorni lavorativi
Termini di pagamento:	L/C, T/T,Paypal,Western Union, L/C, D/A, D/P, T/T
Capacità di alimentazione:	10000 pezzi/giorno

Contatto

Descrizione di prodotto dettagliata

velocità di trasmissione del segnale:

Cat5e/cat6

certificato:

UL/TUV/CE/ROHS

Modalità di connessione:

Spina stacca la spina

Pin di contatto:

Lega di rame (placcata oro)

Evidenziare:

UL PA66 nylon M19 RJ45 connector

screw locking waterproof RJ45 connector

Cat5e waterproof M19 connector

M19 Screw Locking Ethercon RJ45 Waterproof Connector

Description of CCTV Waterproof Connectors For signal

Main Characteristic:

1. Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S

2. Multi-style connecting modes:straight dual etherne port, 90 degree, PCB type and pin header type available

3. Applicable for harsh environments.

4. Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.

5. Sheath of cable applicable for common RJ45 plugs.

6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.

7. Electroplated shell against wind and rain.

8. Shielding system with high frequency noise immunity and electromagnetic interference protection.

Application

LED Display
Lighting outdoor
Mechanical Automation
Electric vehicle charging
Communication control box

Technical Parameters
Connecting mode	Quick push pull Locking
Protection level	IP65
Cable specification	0.15mm2~0.2mm2 /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Current rating(A)	5A
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0

Materials
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel

FAQ

1. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.

2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

3. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

4. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
